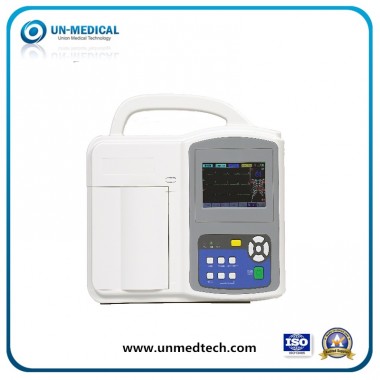

Six Channel Electrocardiograph ECG Machine (UN-8006)
|Product Name || Six channels ECG machine |
|Modle ||UN-8006 |
|1. Six channels ECG machine with automatic interpretation|
2. Manual/Auto working Modes
3. Simultaneous 12 leads acquisition and 6-ch recording with high resolution thermal printer.
4. 4.3/5.6 inch Color TFT LCD display ECG wave and friendly menu setting.
5. Support touch panel and keypad input ways
6. 120 seconds ECG wave freeze and replay function.
7. Lead-off detection and alert
8. Digital filtering, resisting baseline drift, AC and EMG interference
9. Built in USB/RS232 interface(ECGNET software optional)
10. Built in rechargeable Li-ion battery support less than 3 hours continuously work.
11. AC power supply at 90-240V@50/60Hz
|Lead: ||Standard 12 leads|
|Lead acquisition: ||16 bit /24bit 1000Hz(synchronously 12 leads)|
|Work modes: ||MANUAL, AUTO modes|
|AC Flter: || 50Hz / 60Hz|
|EMG Filter: || 35Hz / 45Hz|
|Anti-Drift Filter: || 0.15Hz (Adaptive)|
|CMMR: ||≥ 100dB (with AC filter)|
|Input circuit: Floating; ||Protection circuit against defibrillator effect|
|Input Impedance||≥ 50MΩ|
