Features:

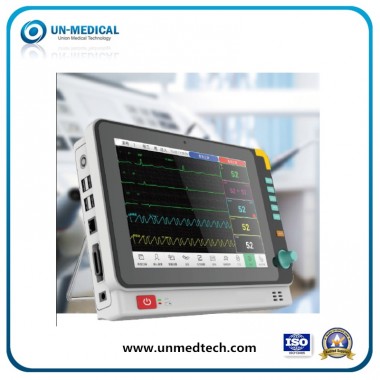

1. 12.1" TFT-LCD display, suitable for bedside,operation room,ICU,etc
2. Ultra thin portable design,thickness of only 52mm
2. Capacitive touch screen(optional),support BLE and WIFI
3. Support multi-language,Chinese,English etc
4. Bult-in detachable rechargeable lithium battery(about 4h)
5. Multi-display supported:LCD,HDMI,VGA and miracast
6. Support for vehicle 12 input
7. Support USD

Specification

ECG

Lead mode:I , II , III ,AVR ,AVL ,AVF ,V
Gain:×0.25,×0.5,×1,×2
Heart rate: 15-300BPM(Adult),15-350PBM(NEO),
          Resolution:1PBM,Accuracy:±1%
ST measurement range:-2.0~+2.0mV
Accuracy:+10%
Pacemaker:yes
Sweep Speed: 12.5mm/s,25mm/s,50mm/s
Bandwidth:    Diagnostic  :0.05~130Hz
             Monitor     :0.5~40Hz
             Surgery     :1~20Hz

SPO2

Measure range :0~100%
Resolution:1%
Accuracy:2%(70~100%)
Pulse Rate:20~250BPM
Resolution:1PBM
Accuracy:±3BPM

NIBP

Work Mode:Manual,Automatic,Continuous
Unit:mmHg,kPa
Measure range:
   Adult:    SYS 40~280mmHg;  DIA 10~225mmHg; MEAN  20~240mmHg
   Pediatric: SYS 40~220mmHg;  DIA 10~160mmHg; MEAN  20~170mmHg
   Neonatal: SYS 40~135mmHg;  DIA 10~100mmHg; MEAN  20~110mmHg
Resolution:1mmHg
Accuracy:±5mmHg

RESP

Measure range:0-150BPM
Resolution:1BPM
Accuracy;±2%

TEMP

Measure range:0~5ºC
Resolution:0.1ºC

Accuracy:±0.1ºC

Optional
1.ETCO2
2.IBP
3.12-lead electrocardiogram
4.Car charger
