Mainstream Wireless Etco2  Capnograph Monitors


Product Introduction:
ETCO2(End-tidal CO2) monitoring is essential during many types of medical procedures ranging from routine respiratory observation to open heart surgery, as well as any time general anesthesia must be administered.

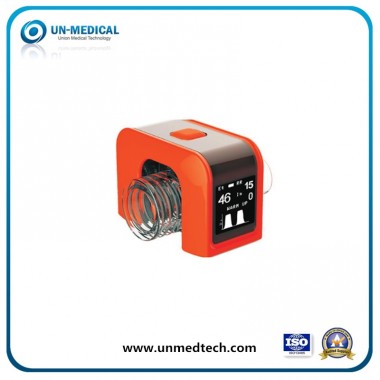

Capno EMER has becoming the smallest wireless End-tidal CO2 Monitor in the world,
Achieving the measuring of ETC02 and Respiratory Rate in all Respiratory Conditions.

Its small size, light in weight and low energy consumption(2 AAA chargeable battery
can last for 4 hours), makes it flexibility and convenience obviously. Suitable for CPR
and emergency transportation.



Application Field:
1. Montioring the patient's respiratory status during CPR
2. Monitoring the patient's respiration during transportation
3. Verificating of ET tube placement





Technical Specifications:

1. Transducer Type:

Capno EMER Wireless Mainstream Capnograph

2. Co2 Accuracy:

Range 3 - 150 BPM
Accuracy ± 1 breath

3. Alarm:

Check adatper, No breath, Battery too low, ETCO2 too low,ETCO2 too high,
RR too low, RR too high

4. Calibration:

No routine user calibration required, An airway adapter zero is required when Changing to a different airway adapter

5. Power Requirements:

Battery:         2 AAA chargeable Battery (2x1.5VDC)
Suggestion:   Please use the original battery

Dimension:
Size:  56(L)X 24(W)X 40(H) mm

Weight:
27.5g(not include battery);  50g(include battery)

Regulatory:
Designed to comply YY0601 and ISO21647

Related Accessories:
(user optional)

1:  Neonatal airway adapter
2:  Adult airway adapter
3:  Manual resuscitator
